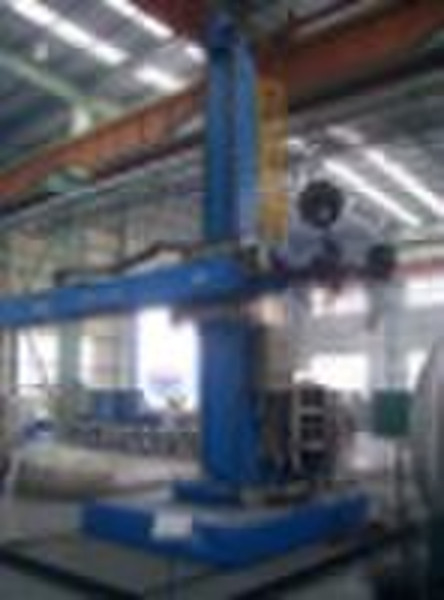

Welding manipulator(welding column and boom)
Nancy Liang
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | welcut or buyer brand |
| Model Number | HC |
the technical spec of standard light duty welding manipulator is as following list. Model HC1212HC2020HC3030HC4040HC5050Effective extension stroke (mm) 12002000300040005000Boom extension speed (mm/min) 120-1200Effective vertical stroke (mm) 12002000300040005000Boom elevation speed (mm/min) 400400100010001000Column rotation degree ±180°Column rotate speed (rpm) ManualManual0.05-0.50.05-0.50.05-0.5Trolley travel speed (mm/min) ManualManual200-2000200-2000200-2000Cross micro-adjusting distance (mm) 100*100(Manual)100*100(Manual)250*250Powered250*250Powered250*250PoweredEnd loading(kg) 100100300200100Rail carriage track width, inside to inside(mm) 800800156015601730Max extension(mm) 17802715421052106210 the technical spec of heavy duty welding manipulator is as following list Model HC4040AHC5050AHC6060AHC6060BHC7070BEffective extension stroke (mm) 40005000600060007000Boom extension speed (mm/min) 120-1200Effective vertical stroke (mm) 40005000600060007000Boom elevation speed (mm/min) 1000Column rotation degree ±180°Column rotate speed (rpm) 0.05-0.5Trolley travel speed (mm/min) 200-2000Cross micro-adjusting distance (mm) 250*250End loading (kg) 400280120300200Rail carriage track width, inside to inside(mm) 17301730200020002000Max extension(mm) 53006300730074008400
Delivery terms and packaging
Port: shanghai
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
